Husqvarna Blastrac 2-30DS

by Husqvarna

Assembly1 / 6

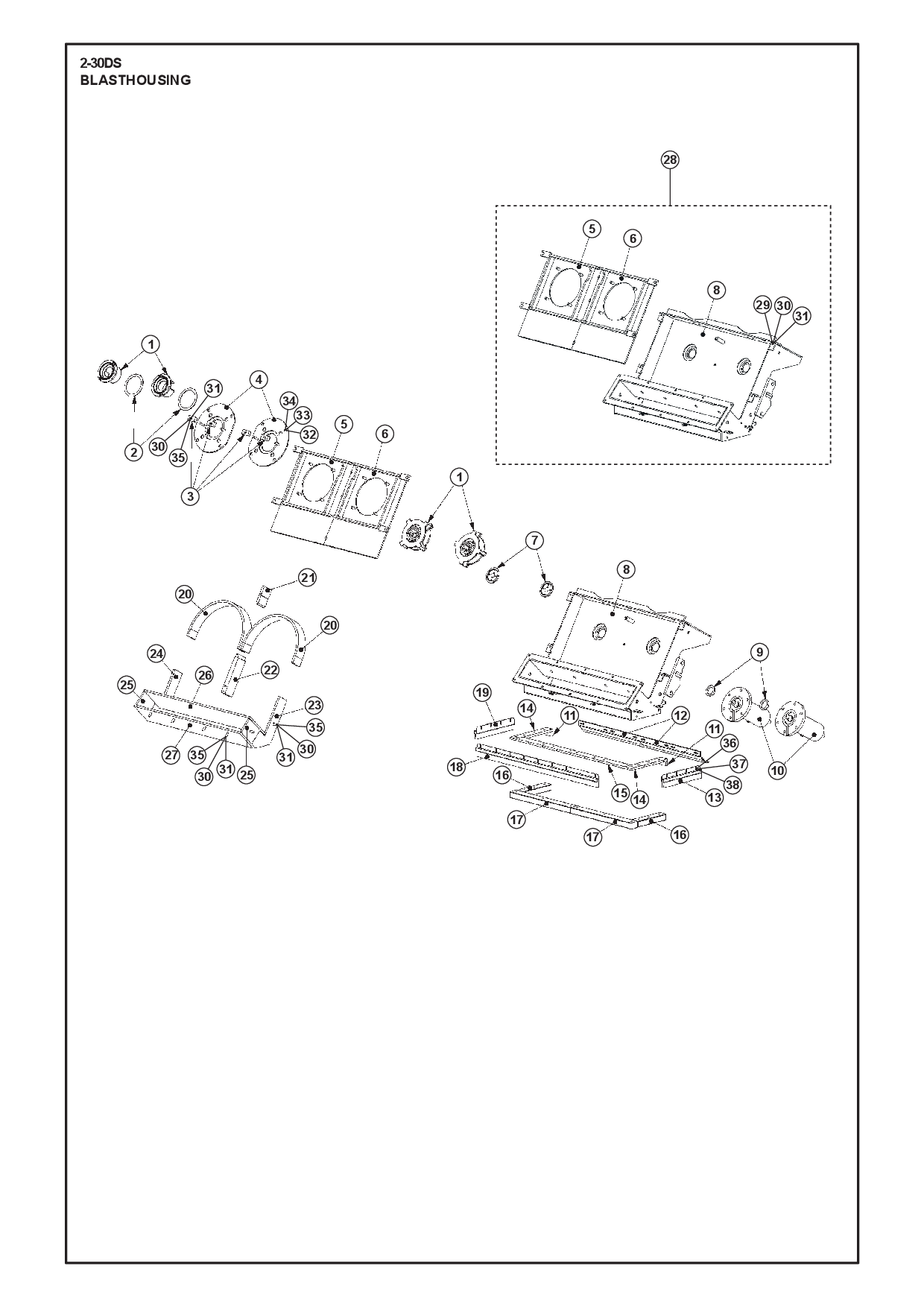

Schematic 1 of 6

Parts List

Fig	Part Name	SKU	Price
1	TUNE-UP KIT	531459001	$236.60
1	TUNE-UP KIT	531459001	$236.60
2	SHIM	534411101	$20.02
3	CLAMP	534410802	$35.21
4	COVER	534340602	$217.00
5	PLATE	534594202	$966.00
5	PLATE	534594202	$966.00
6	PLATE	534594302	$900.90
6	PLATE	534594302	$900.90
7	HUB	533762001	$177.80
8	HOUSING	534015702	$6255.90
8	HOUSING	534015702	$6255.90
9	SEAL	533442501	$5.16
10	BEARING UNIT	533807402	$1436.40
11	SPACER	534857401	Call
11	SPACER	534857401	Call
12	SEAL	533743001	$130.90
13	BRUSH	533805801	$79.80
14	INSULATOR	534644801	$224.70
14	INSULATOR	534644801	$224.70
15	INSULATOR	534593601	$266.70
16	MAGNET	534697302	$718.90
16	MAGNET	534697302	$718.90
17	MAGNET	534696702	Call
17	MAGNET	534696702	Call
18	BRUSH	534595101	$128.10
19	BRUSH	533806501	$79.80
20	LINER	533611101	$235.20
20	LINER	533611101	$235.20
21	LINER	533614001	$74.20
22	LINER	533727501	$304.50
23	LINER	533722401	$129.50
24	LINER	533713101	$116.90
25	LINER	533572901	$100.80
25	LINER	533572901	$100.80
26	LINER	534766701	$284.20
27	LINER	534765301	$334.60
28	HOUSING	534055502	Call
29	DUMMY PART	900000002	Call
30	DUMMY PART	900000002	Call
30	DUMMY PART	900000002	Call
30	DUMMY PART	900000002	Call
30	DUMMY PART	900000002	Call
31	WASHER	536063001	Call
31	WASHER	536063001	Call
31	WASHER	536063001	Call
31	WASHER	536063001	Call
32	DUMMY PART	900000002	Call
33	DUMMY PART	900000002	Call
34	DUMMY PART	900000002	Call
35	NUT	538913501	$11.34
35	NUT	538913501	$11.34
35	NUT	538913501	$11.34
36	SCREW IHSCM	725544901	$2.87
37	DUMMY PART	900000002	Call
38	WASHER	734116301	$2.76
